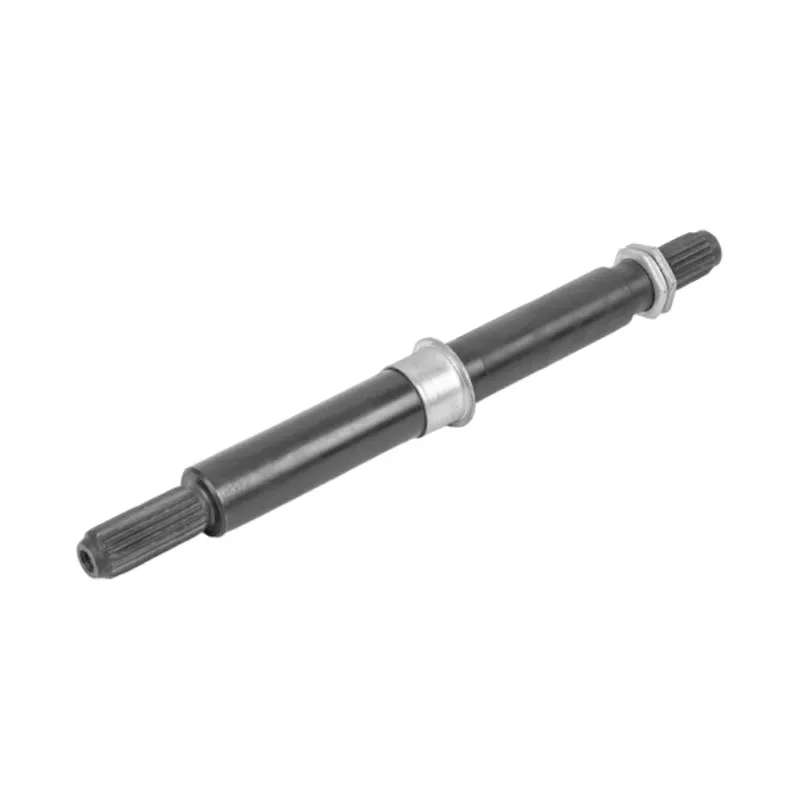

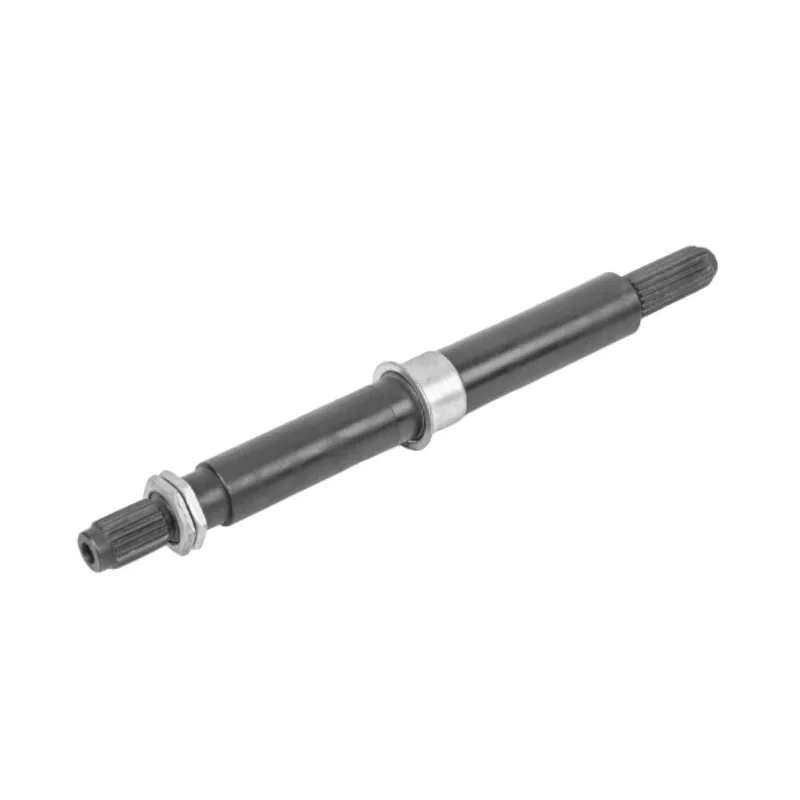

Rectangular Spline Motor Shaft

The China Rectangular spline motor shaft produced by Guanshuo manufacturer adopts a multi-tooth structure design. Multiple tooth sections work together to bear the load, ensuring smoother torque transmission. Compared with single-key, double-key and multi-key slot products, it has more outstanding shock resistance and eccentric load resistance capabilities, and is suitable for various complex working conditions.

The production process adopts professional techniques such as gear hobbing, forming and grinding. It strictly controls the accuracy of tooth shape and indexing, precisely controls the clearance of the fit, ensuring smooth transmission during equipment operation with lower noise, and enhancing the user experience.

Using high-quality alloy steel and carbon steel as raw materials, and processed through precise heat treatment technology, the tooth surface has high hardness, while the core part has excellent toughness. It features outstanding anti-fatigue, anti-wear and anti-breakage properties, and ensures a longer service life.

It has extremely strong adaptability. It can be produced in accordance with national standards, and also can be customized for tooth count, pressure angle, tooth width and positioning method. Surface treatment can also be carried out to enhance corrosion resistance and assembly smoothness.

It has outstanding versatility, not only suitable for medium and low-speed heavy equipment, but also applicable to medium-high speed precision transmission scenarios. No additional adaptation or adjustment is required, and it can meet the transmission needs of various devices.

Application scenario

In the field of heavy machinery, it is suitable for equipment such as mining machinery and heavy machine tools. It can withstand heavy loads and resist impacts, and can stably transmit power in complex working conditions to ensure the continuous operation of the equipment.

In the field of precision equipment, it is suitable for medium and high-speed precision machine tools, precision instruments, etc. With its high-precision transmission performance, it reduces running vibration and ensures the processing accuracy and operational stability of the equipment.

Our Rectangular spline motor shaft is suitable for the general industrial field. It can be used in various medium and low-speed heavy-load equipment and conventional transmission equipment. It combines stability and practicality, meeting the transmission requirements of ordinary industrial production.

Customized scenarios are designed to meet the requirements of non-standard equipment and special installation spaces. By adjusting parameters such as tooth count and specifications, they can be adapted to various complex transmission scenarios and solve the compatibility issues of non-standard equipment.

Product Parameter (Specification)

Production Details
