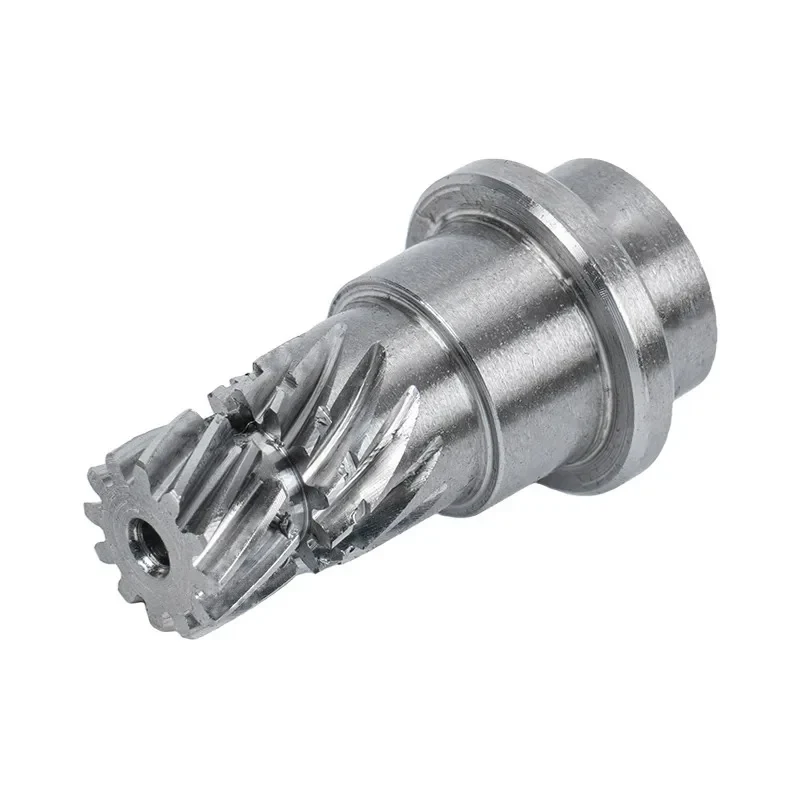

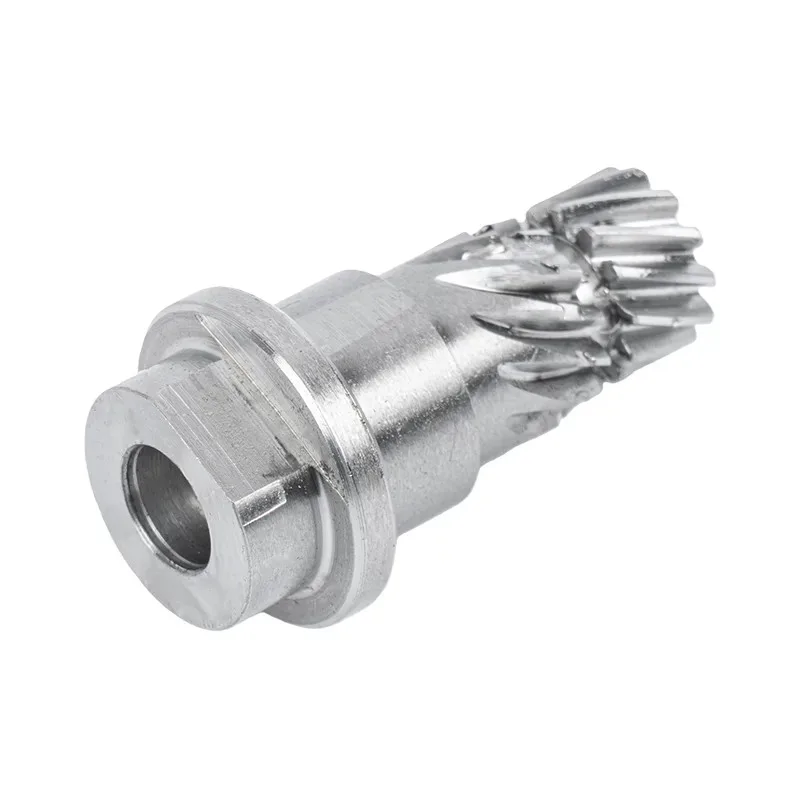

The Guanshuo’s China Triangular spline motor shaft has a simple tooth profile and a small radial dimension, making it particularly suitable for small/micro equipment with limited installation space and shaft diameter. It saves more space than rectangular and involute splines. The tooth shape is triangular. The processing technology is simple, the efficiency is high, the scrap rate is low, and the overall cost is more advantageous. It is suitable for large-scale and economical procurement scenarios and has outstanding cost performance. The tooth side centering is the main function, with good automatic centering effect, high coaxiality, smooth transmission and low vibration. It is suitable for light-load, medium and low-speed transmission with high requirements for smoothness. The tooth profile Angle is fixed, the fit clearance is controllable, the assembly is smooth, and it is less likely to have problems such as jamming and seizing, which improves the assembly efficiency and the reliability of use.
|
Equal division error |
≤0.01~0.02mm |
Spline segment length |
15~150mm |
|
torque range |
5~50N·m |
|
|
Q1: What kind of equipment is this motor shaft suitable for?
A1: Suitable for installation in spaces with limited installation area and shaft diameter.
Q2: Compared to other splines, what are its advantages?
A2: It takes up less space, is easier to process, and has a lower cost.
Q3: How is the transmission performance?
A3: Excellent automatic alignment, high coaxiality, smooth transmission and low vibration.
Q4: For which working conditions is it suitable?
A4: Suitable for light-load, medium-low speed transmission, and scenarios with high requirements for stability.
Q5: Is the assembly process difficult? Will there be any glitches?
A5: The assembly is smooth, with controllable clearance. It is not prone to jamming or locking.
Q6: Are there any discounts for the purchase?
A6: Exclusive discounts are available for wholesale and bulk purchases.
Q7: Is there any advantage in terms of price?
A7: The factory supplies directly without any middlemen, resulting in lower prices and higher value for money.
Q8: What is the torque range?
A8: Torque range: 5 to 50 Newton-meters.
Q9: What are the options for the length of the spline segments?
A9: 15 - 150 millimeters, selectable as per your needs.
Q10: Is it suitable for large-scale procurement?
A10: Suitable. High processing efficiency, low waste rate, and suitable for bulk purchasing.
The triangular spline motor shaft features simple processing, low cost, high cost performance, good centering, smooth transmission, low vibration, smooth assembly, less jamming, and strong adaptability to light load, medium and low-speed scenarios.
