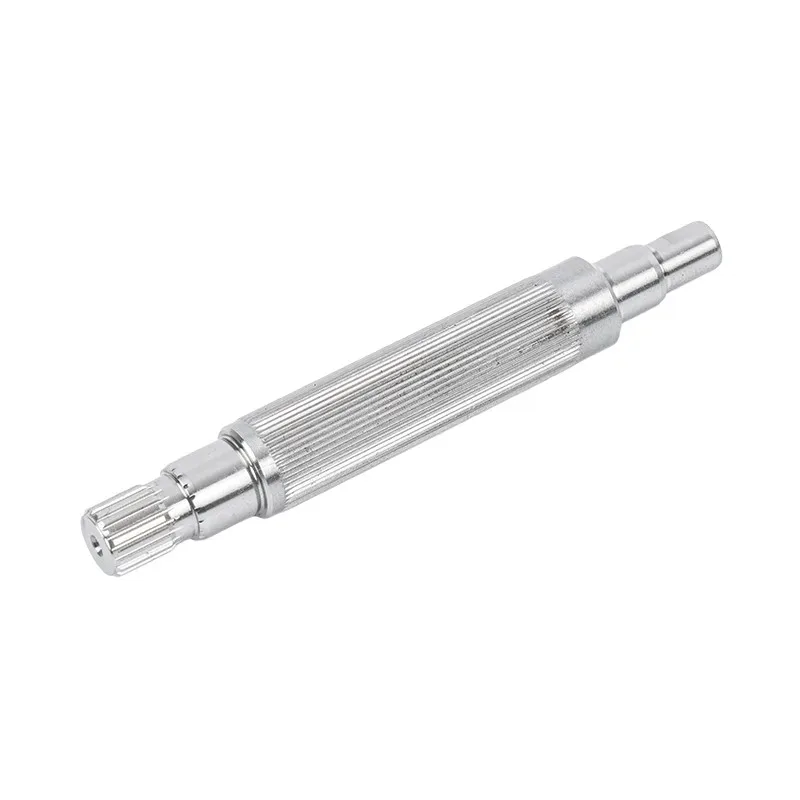

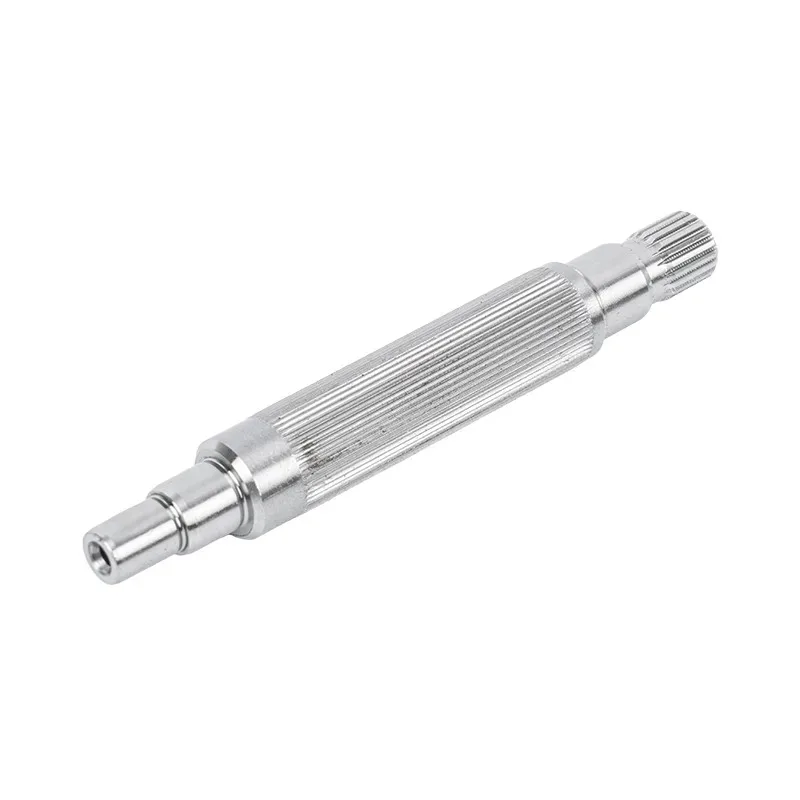

The Involute spline motor shaft by Guanshuo factory automatically aligns during assembly, achieving higher coaxiality and smoother transmission. Its vibration and noise control are superior to those of rectangular splines, making it particularly suitable for high-speed and high-precision transmission. The stress distribution is more reasonable, the fatigue resistance life is longer, the fillet at the tooth root is larger, the stress concentration is smaller, the impact resistance, fatigue resistance and anti-eccentric load capacity are stronger, it is more stable under frequent forward and reverse rotation and heavy load impact conditions, and the service life is generally higher than that of rectangular splines. It has better high-speed performance, higher transmission efficiency, smooth tooth profile and less meshing impact. It is suitable for medium and high-speed rotating equipment. With high transmission efficiency and low heat generation, it is the preferred solution for high-speed motors and precision spindles.
|
Spline equalization error |
≤0.015~0.03 mm |
Spline symmetry |
≤0.02 mm |
|
gear surface roughness |
Ra ≤ 0.8~1.6 μm |
tooth root fillet |
R0.3~R0.8 |
The involute spline motor shaft features automatic centering, high coaxiality, smooth transmission, multi-tooth load-bearing, strong heavy-load, shock and fatigue resistance, high speed and low noise, high efficiency, long service life, high processing accuracy, good interchangeability, flexible customization, and is suitable for high-speed and heavy-load scenarios.
