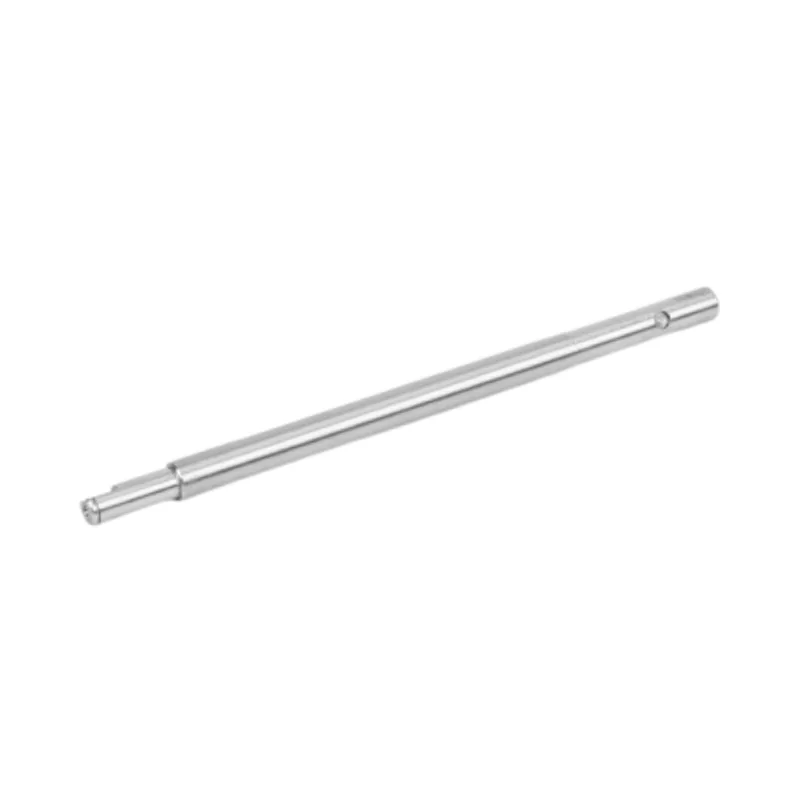

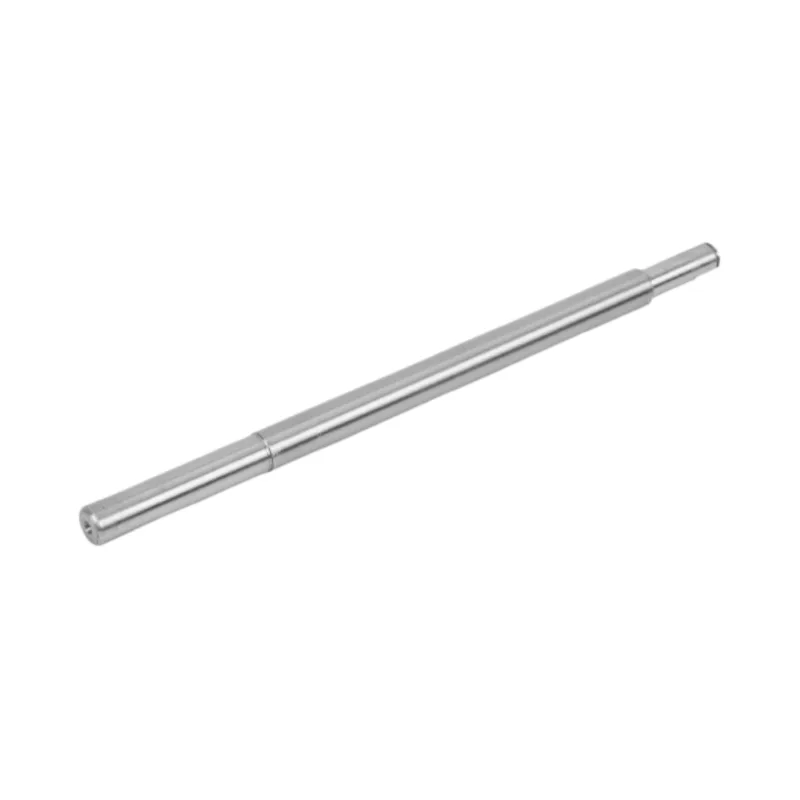

Stepper Motor Shaft

The stepper motor shafts manufactured by Guanshuo suppliers mostly adopt a straight shaft single-step structure, equipped with standardized key grooves, threads and D-shaped planes. They do not require additional adapters and can be quickly matched with conventional automated equipment for use.

Through CNC turning and fine grinding processes, the dimensional tolerance is stable and the concentricity is excellent. It can meet the quality consistency requirements for batch purchases and the quality is controllable.

The surface can be treated with quenching, blackening or chrome plating. It has excellent wear resistance and can withstand long-term continuous operation conditions, thereby extending the service life of the equipment.

The outer diameter tolerance is h7, the surface roughness is Ra0.8 - Ra1.6, the diameter runout is ≤ 0.01 - 0.02 millimeters, the end face chamfer is C0.5 - C1, and the specifications meet the precise standards.

Product Parameter (Specification)

Product features

The positioning is precise, with low radial runout and good rigidity of the shaft. Combined with the step angle control of the stepper motor, there is no obvious jitter during operation, ensuring the positioning accuracy of the equipment.

Lightweight design, with a small rotational inertia, smooth start and stop, rapid response, and capable of meeting the dynamic performance requirements of small and precise equipment.

Our Stepper motor shaft has a wide range of applications and is compatible with most stepper motors. Its standardized structure is suitable for conventional automation equipment, and the procurement and selection process is convenient.

It can be flexibly customized. The D-shaped shaft, plane position, key slots, etc. can all be adjusted as needed. It can quickly adapt to non-standard equipment, shortening the project delivery cycle. High cost-effectiveness, controllable costs, stable quality for bulk purchases, balancing practicality and economy, suitable for various procurement scenarios.

FAQ

Q1: Can this Stepper motor shaft be used with all types of stepper motors?

A1: It is compatible with most stepper motors and has strong versatility. The regular models can be used directly.

Q2: Can the positioning accuracy meet the requirements of precision equipment?

A2: Yes, it has small radial runout, good rigidity, and precise positioning with no obvious jitter.

Q3: Is customization supported? Can it be adapted to non-standard devices?

A3: Supports customization. The structure can be adjusted as needed and quickly adapts to non-standard equipment.

Q4: What are the options for surface treatment?

A4: It can be subjected to quenching, blackening or chrome plating, offering excellent wear resistance and is suitable for long-term operation.

Q5: Can the quality of batch purchases be consistently guaranteed?

A5: Yes, the process is stable, the size tolerance and concentricity are consistent, and the quality is controllable.

Q6: For which types of devices is it suitable?

A6: Suitable for small-scale precision equipment and conventional automation devices, with a focus on precision positioning scenarios.
