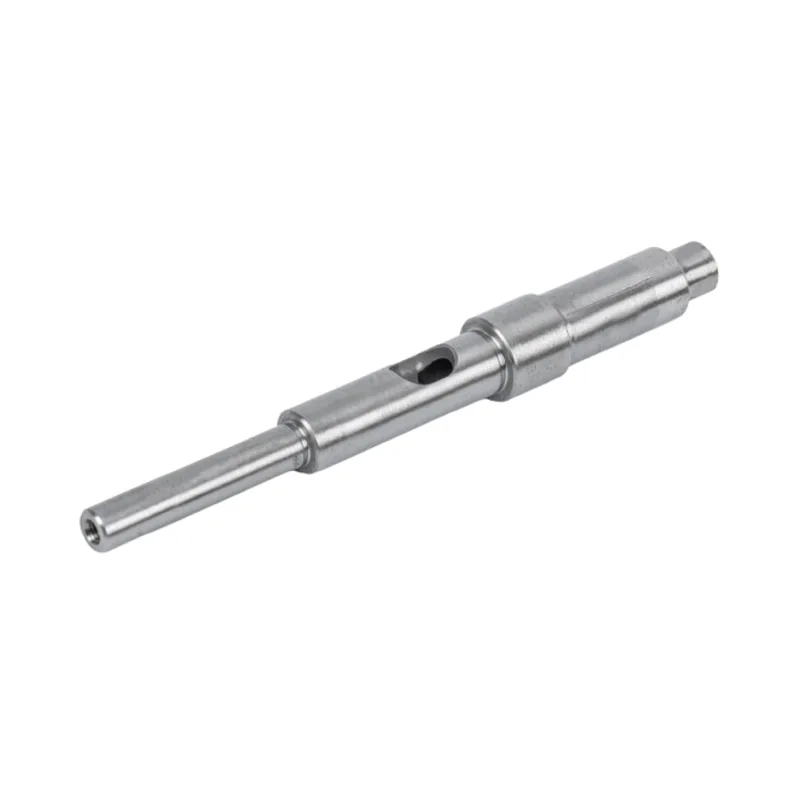

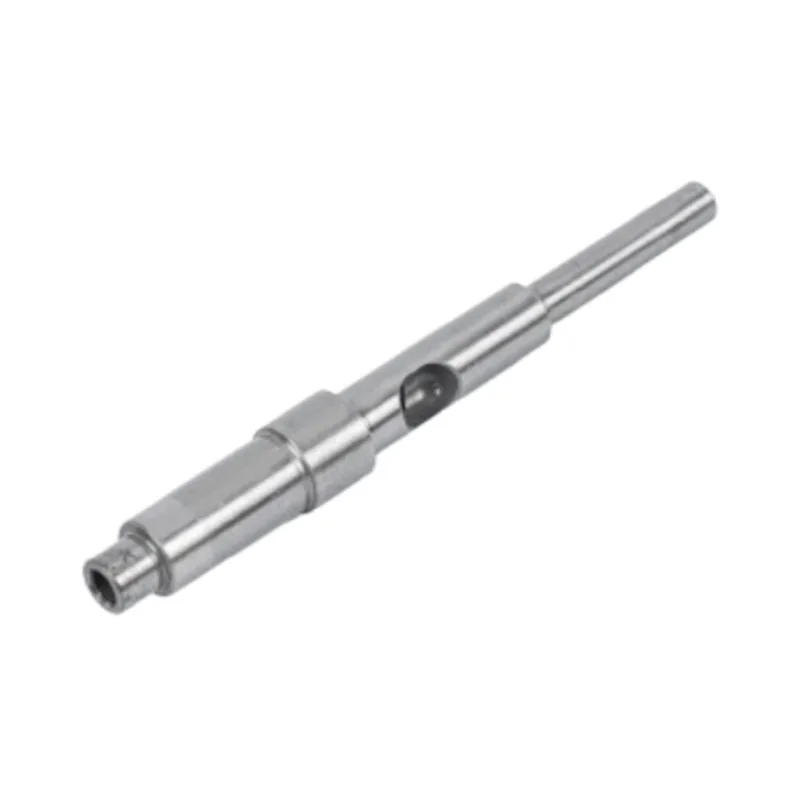

The Guanshuo’s China Double step type motor shaft is divided into large and small diameter sections. The step surface enables precise axial positioning of bearings, rotors, gears and couplings, reducing positioning parts and simplifying assembly. The large diameter section bears the rotor and the main torque, while the small diameter section is suitable for bearing sealing. The stress distribution is more reasonable, with stronger torsional and bending resistance, reducing the risk of fatigue fracture. The steps form a natural stop mouth, and the bearings and end covers can be centered with one click. The coaxiality and assembly efficiency are both improved, and the debugging time is reduced. Sealing grooves and sealing rings can be set at the steps. The product is easy to maintain, oil-proof and dust-proof, suitable for damp and dusty working conditions, and can extend the lubrication life.
|
Single step width |
3~8 mm |
Straightness of the shaft body |
≤0.03 mm / 100 mm |
|
diameter runout |
≤0.02 mm |
Step end face |
Ra ≤ 1.6~3.2 μm |
The Double step type motor shaft, with step positioning, load optimization and integrated sealing as its core, realizes the four major values of "precision, compactness, reliability and cost reduction", and is highly durable. It is the preferred shaft type for the procurement of precision transmission and miniaturized equipment. Covering multiple fields, it is adapted to both standardized and customized procurement scenarios, fully meeting the diverse procurement needs of the purchasing party.
