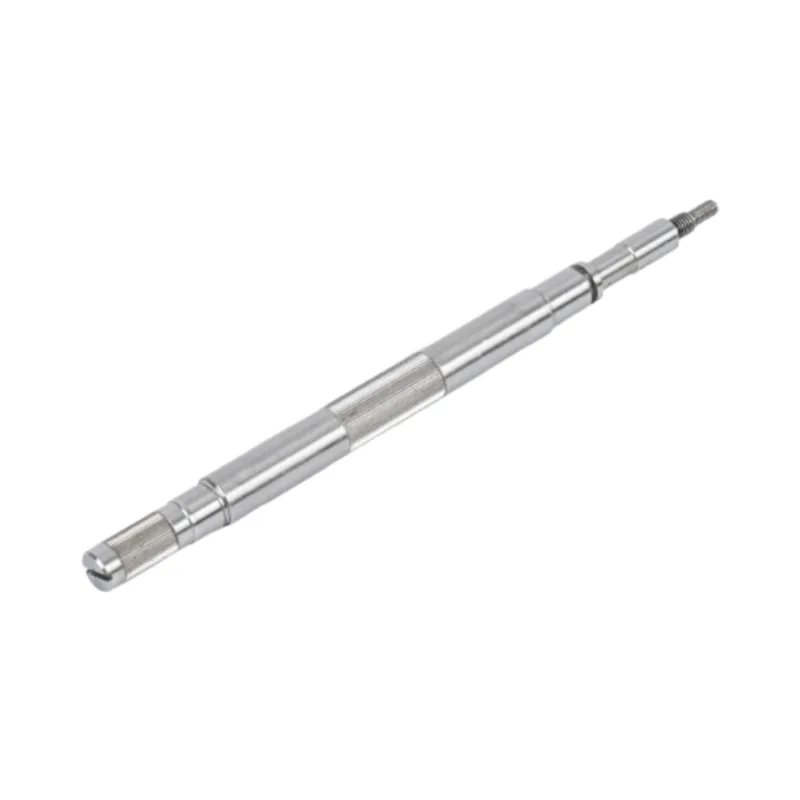

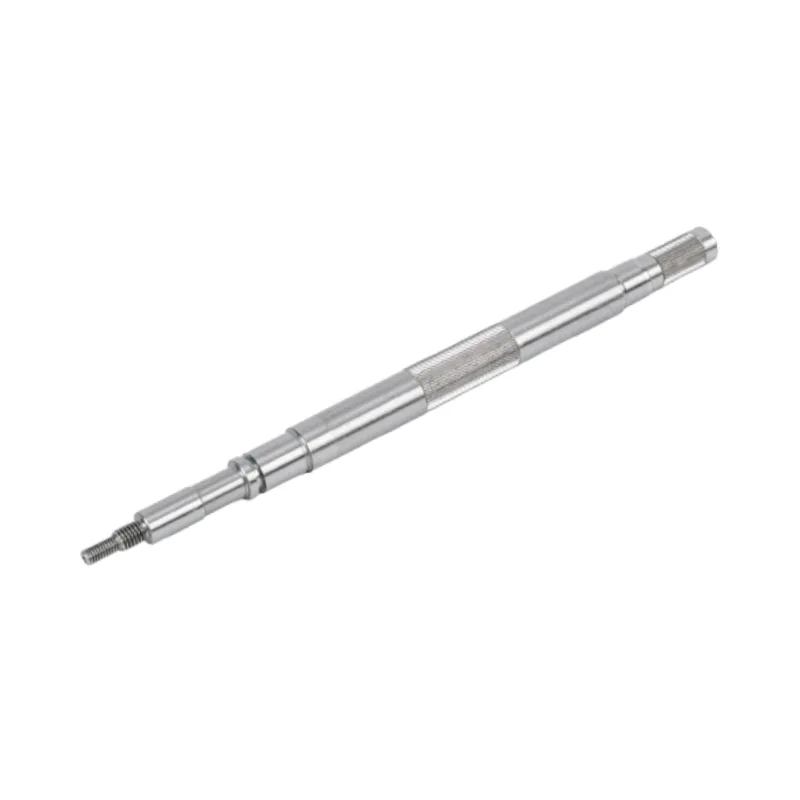

The Blind hole motor shaft manufactured by Guanshuo supplier combines lightweight design with shaft rigidity, effectively reducing rotational inertia and enhancing dynamic response speed. It is suitable for high-speed and servo motors, meeting their dual requirements for lightweight and rigidity.
By relying on the CNC turning and boring precision processing technology, the depth, coaxiality and surface roughness of the blind holes are all stably met the standards, and they conform to the tolerance requirements for precision transmission procurement.
The blind holes are designed with a sealed and sealed structure, which can effectively protect the internal components, reduce equipment failures, lower the maintenance costs in the later stage, and improve the purchasing cost-effectiveness.
Support flexible customization. The inner diameter, depth and internal structure of the blind holes can be adjusted according to the procurement requirements, enabling quick adaptation to non-standard equipment and shortening the procurement and development cycle.
The inner diameter of the blind holes ranges from φ2 to φ30 millimeters, the depth is 5 to 150 millimeters, and the diameter deviation is controlled within ≤ 0.01 - 0.02 millimeters. The specifications are precisely controllable.
When customizing, it is necessary to clearly specify the inner diameter and depth of the blind holes, as well as the dimensions of the built-in components. Failure to do so may result in incompatible specifications and affect installation and usage.
When installing the built-in components of the Blind hole motor shaft, handle with care to avoid colliding with the inner wall of the blind hole and prevent damage to the shaft's accuracy.
During use, avoid water or dust entering the blind holes to prevent damage to the internal components and rusting of the shaft.
Regularly inspect the sealing condition of blind holes. If the sealing becomes loose, address the issue promptly to ensure the protective effect.
When storing, it should be placed in a dry and ventilated environment. Avoid pressing the blind hole end downward to prevent the shaft from deforming.
|
Inner diameter of the blind hole |
φ2～φ30 mm |
Blind hole depth |
5～150 mm |
|
diameter runout |
≤0.01～0.02 mm |
|
|
Blind hole motor shafts feature integrated functions, space-saving and cost-saving, lightweight and high rigidity, outstanding dynamic performance with small inertia, reliable noise protection, longer service life, faster response, improved equipment positioning accuracy and motion stability, flexible customization, and controllable delivery time.
